רסיבר 7.2 ערוצים מבית ONKYO דגם TXNR545
תמיכה מלאה ב 4K
סאונד תומך DOLBY ATMOS
גרסת HDMI 2.2
2 איזורי שליטה של סאונד
כולל בלוטוס מובנה
7.2-Channel Network A/V Receiver
Discover the Balance of Power and Performance
The 7.2-channel TX-NR545 Network A/V Receiver is the best-equipped receiver in its class, delivering powerful audio. Built-in AirPlay, Wi-Fi®, Bluetooth streaming, Spotify Connect, and more let you enjoy streaming media. Ready for UltraHD video and premium 4K content, the TX-NR545 features the latest HDMI® and HDCP 2.2 compatibility. A premium 384 kHz/32-bit hi-grade AKM DAC unlocks the full potential of all your audio, including multidimensional Dolby Atmos®, DTS-HD Master Audio™, and Hi-Res audio formats. It’s also very easy to use—there’s easy music streaming and system control using the free remote control app and a Quick Setup function that lets you adjust settings without interrupting playback. With 100 W/Ch, the TX-NR545 powerfully drives your movies, games, and music with superior clarity and energy.
Supports Dolby Atmos up to 5.1.2 Channels
100 W per Channel
HDMI 6 In / 1 Out (4K UltraHD / HDCP 2.2)
True Driving Power from Discrete Amp Circuits
Bluetooth Audio / Wi-Fi with Spotify and AirPlay
DSD 5.6 MHz, FLAC 192 kHz/24-bit Hi-Res Audio Capable
384 kHz/32-bit Hi-Grade DAC
AccuEQ Room Acoustic Calibration
ADVANCED FEATURES
4K/60 Hz-Capable HDMI® Terminals for Ultra HD Entertainment
Built-in Wi-Fi® Certified Wireless LAN Capability
Bluetooth Version 2.1 + EDR Capability (Compatible Profile: A2DP v1.2, AVRCP v1.3) with Advanced Music Optimizer DSP Technology
Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Spotify, and Deezer)*1
Playback Compressed, Lossless, and Hi-Res Audio via Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM*2)
Proprietary AccuEQ Room Calibration with Mic Included
Advanced Music Optimizer to Improve Compressed Digital Audio Quality (Bluetooth Audio Included)
Control and Stream with Free Onkyo Remote Streaming Apps for iPod touch/iPhone*3 and Android™ Devices*4
Phase-Matching Bass Boost for Deep Bass and Clear Mid-Range
Zone 2 Line-Out for Distributed Audio Playback in Another Room
*1 Availability of services depends on region. Some services may require a paid subscription and firmware update. Availability of third-party services advertised here is accurate at the time of publication, but may be subject to change without notice. *2 LPCM is supported via DLNA only. *3 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later. *4 Requires Android 2.1 or later.
AMPLIFIER FEATURES
120 W/Ch (6 Ω 1 kHz, 1% THD, 1 Channel Driven, IEC); 120 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, JEITA)
WRAT (Wide Range Amplifier Technology)
H.C.P.S. (High Current Power Supply) Massive High Power Transformer
Discrete Output Stage Circuitry
Optimum Gain Volume Circuitry
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
PROCESSING FEATURES
Dolby Atmos® Decoding
HDMI® Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Dolby® TrueHD and DTS-HD Master Audio™ Decoding
AK4458 384 kHz/32-bit DAC (8 Channels x 1)
Advanced 32-bit DSP Chip
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Theater-Dimensional Virtual Surround Function
CinemaFILTER™
Direct Mode
Double Bass Function
Non-Scaling Configuration
A-Form Listening Mode Memory

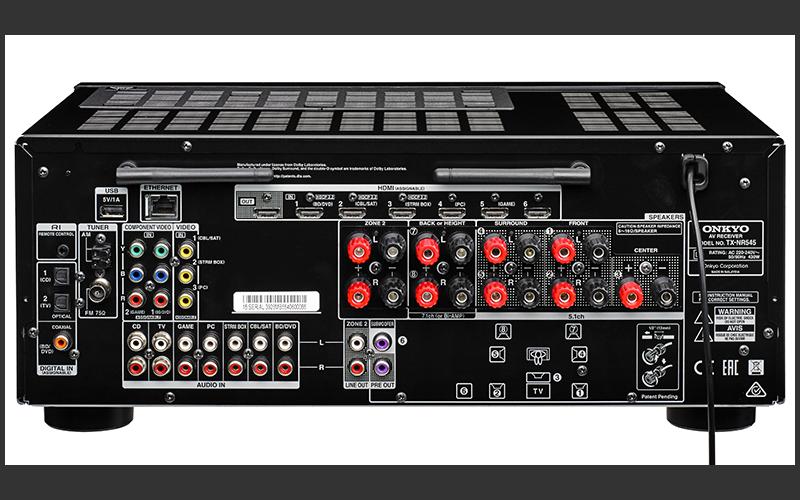

CONNECTION FEATURES
6 HDMI Inputs and 1 Output
USB Port
Mass Storage Class USB Memory Playback Capability
2 Component Video Inputs (Rear)
4 Composite Video Inputs (1 Front/3 Rear)
3 Digital Audio Inputs (2 Optical and 1 Coaxial)
8 Analog Audio Inputs (1 Front/7 Rear)
2 Parallel Subwoofer Pre-Outs
Banana Plug-Compatible Speaker Posts
Headphone Jack
OTHER FEATURES
Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)
A/V Sync Control (Up to 500 ms in 10 ms Steps at 48 kHz)
Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
Hybrid Standby Function with HDMI Passthrough to Reduce Power Consumption
Smart Grid-Ready
Tone Control (Bass/Treble) for Front L/R Channels
3-Mode Display Dimmer (Normal/Dim/Dimmer)
40 FM/AM Random Presets
Certified with DLNA Version 1.5
Firmware Updates via Ethernet and USB
RIHD (Remote Interactive Over HDMI) for System Control
Compatible with RI Dock for iPod/iPhone and AirPlay (DS-A5)
Preprogrammed RI (Remote Interactive) Remote Control
Extraordinary Dolby Atmos®
Dolby Atmos transports you into an extraordinary surround sound experience with captivating, multidimensional sound objects that fill your room and flow all around you. This 7.1-channel receiver can power a 5.1.2-channel Dolby Atmos speaker setup: 5.1 standard surround configuration plus two in-ceiling or height channels: 5.1.2.
HDMI® 6 In / 1 Out for UltraHD
All HDMI terminals support the latest TV video displays, and with three inputs handling HDCP 2.2 copy protection encoded in content from movie studios, broadcasters, and streaming services, for next-generation UltraHD.
True Power from Discrete Amplifiers
Discrete Amps deliver high instantaneous current to increase speaker control for accurate and dynamic audio reproduction. This precise power is the cornerstone of Onkyo’s amplification philosophy.
Bluetooth Streaming / Wi-Fi® with Spotify and AirPlay
Stream virtually any audio from your smartphone, tablet, or PC to your home cinema for clear and powerful sound.
Hi-Res Audio Capable
Onkyo A/V receivers are engineered for universal Hi-Res compatibility and ease of use. Use the remote app to locate your Hi-Res albums (including 5.6 MHz DSD playback) on PC or network-attached storage and bask in the clarity, depth, and detail of high-resolution music.
384 kHz/32-bit Hi-Grade DAC
A premium-quality AK4458 digital-to-analog converter from Asahi Kasei unlocks the full potential of any audio format, thanks to unique low-distortion filtering technologies for clear sound.
