Power and Processing:

• 7-channel amplifier
• 150 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven
• Dolby® TrueHD, DTS-HD™ Master Audio, Pro Logic® IIx, and DTS Neo:6 decoding
• analog-to-HDMI video conversion (to 480p)
• Audyssey MultEQ® XT auto speaker calibration for precise surround sound and easier system setup (microphone included)

Digital Music Options:

• iPod®/iPhone® integration (requires optional NAD IPD 2 dock)
• XM Satellite Radio Ready (requires XM subscription and optional XM tuner kit)

Multi-room Audio:

• four-zone capability
• powered dual-room/dual-source output
• surround back amplifier channels can be assigned to power speakers in Zone 2, 3, or 4
• only analog sources can be played in additional listening rooms

Audio Performance Features:

• dual toroidal transformers deliver clean, consistent power to all channels
• NAD PowerDrive circuitry delivers extra punch to music and movies
• back surround speaker channels re-assignable for biamping front left and right speakers for better sound
• gold-plated A/V inputs/outputs
• detachable power cord

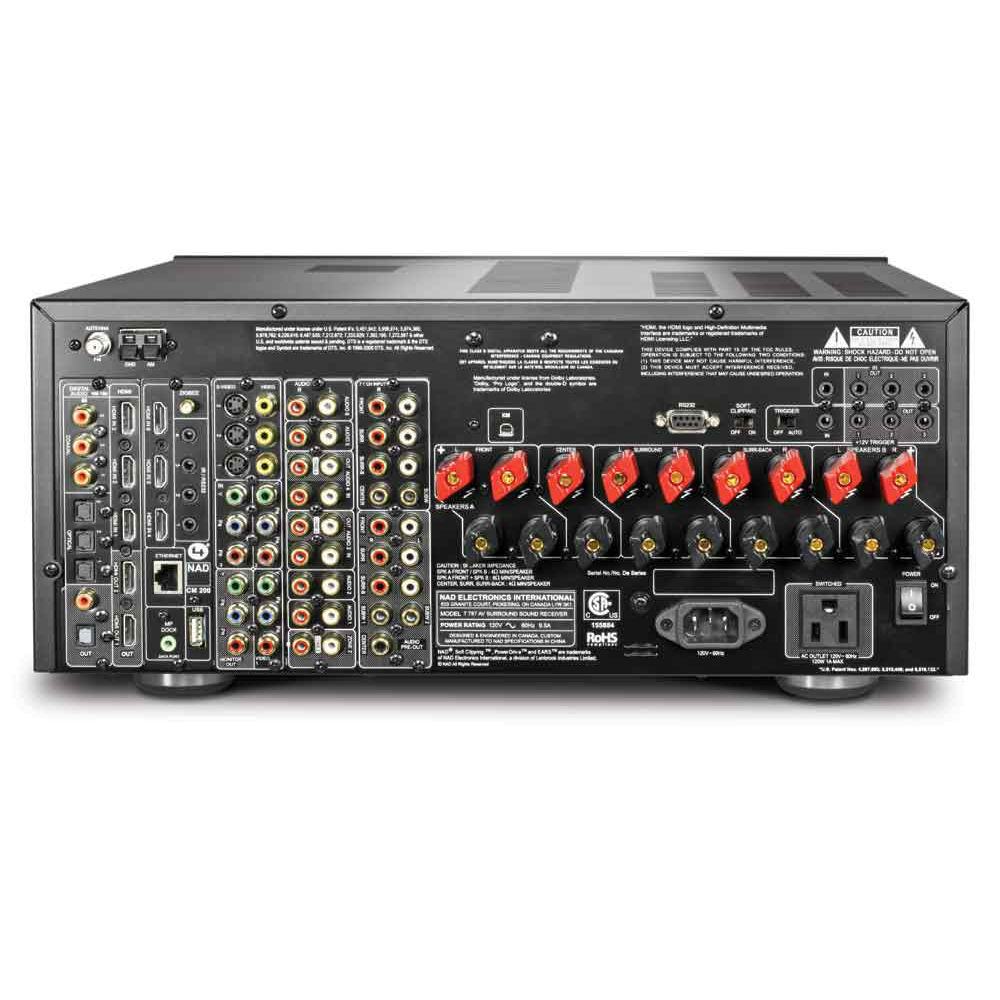

Connections for up to 9 A/V source components:

• inputs are assignable for hookup flexibility
• 1080p-compatible HDMI digital video switching (7 in, 2 out)
• HDMI version 1.4 with support for 3D video, Audio Return Channel, Deep Color, x.v.Color, auto lip-sync, and HDMI-CEC
• component video switching (3 in, 1 out)
• S-video input
• digital audio inputs: 4 optical , 3 coaxial
• digital audio outputs: 1 optical, 1 coaxial
• 4 analog stereo RCA inputs, including 1 front-panel
• 7.1-channel analog audio preamp input
• 7.1-channel preamp output for connecting optional external amplifiers
• 5 audio/video inputs, including:
  • 1 front-panel input with composite and S-video
  • 4 rear-panel inputs with composite and S-video
• no phono input — to connect a turntable you'll need to add a phono preamp
• RS-232 and Ethernet port for automated control systems
• 1 switched AC outlet
• 1 pair of main speaker outputs

General Features:

• intuitive on-screen menu via all monitor outputs
• HDMI standby pass-through allows HDMI switching without powering up receiver
• 40 AM/FM presets
• A/V remote
• basic remote for second listening room (requires remote control extender system, not included)
• 17-1/8"W x 7-13/16"H x 17-7/8"D
• weight: 55.6 lbs.
•

The NAD T 787 AV Surround Sound Receiver's remarkable performance brings movies and music to life. It's the ideal choice for the most advanced home theatre and multi-room systems. Our T 787 features high definition 3D video at resolutions up to 1080p, decoding of all the latest surround sound formats, and a whole lot of pure, clean power. Add our exclusive Modular Design Construction (MDC)-one of the decade's most important innovations-and the T 787 boasts enough performance and flexibility for many years of unbelievable home entertainment. Though it's packed with a full array of features, the T 787 emphasizes simplicity with a user-friendly interface allowing you to enjoy every feature without confusion.

MDC-Future Ready

The ever-changing world of AV technology poses a great problem if you want the latest technology. So we devised an uncommon answer to technology obsolescence to give you confidence in your AV investment-Modular Design Construction (MDC). With MDC, your T 787 can be easily upgraded to include future digital formats without replacing the entire AV receiver. It's totally unique and unprecedented. No wonder MDC won the prestigious reddot Design Award.

Two Transformers are Better than One

Two Toroidal transformers supply power separately to your front (left and right) and surround channels for true seven-channel power with better balance and efficiency. Even the most explosive music and soundtracks are a breeze for the T 787 thanks to 120W of continuous power per channel and NAD's PowerDrive. With PowerDrive, extra power is delivered effortlessly for dynamic immersive sound for music or movies. We've even eked out more musical performance from the T 787 by making improvements to the power amplifier.

'Music First' Audio

The T 787 uses the latest high-speed Dual Core Floating Point DSP technology for popular surround formats including Dolby TrueHD and DTS-HD Master Audio. We have also included our own highly regarded EARS (Enhanced Ambient Recovery System) surround mode, which has been optimized to create warm natural surround sound from any two-channel source. EARS eliminates the artificial effects common in other DSP modes. For your music and movies, nothing can compare to the T 787's natural musicality, immense depth, and incredible detail.

Pure Video

Video performance is as pure as our audio performance. Unlike other brands, NAD eschews multiple format conversions and video processing that degrades video quality in favour of sending a pure video signal to your display. The latest digital video technologies are supported, including 3D video in resolutions up to 1080p. The T 787 will also cross convert analogue video sources, plus it offers the latest HDMI technologies like Consumer Electronic Control (CEC) and Audio Return Channel (ARC).

Set Up and Forget About It

NAD's unique AV Presets can be configured to maximize your use and enjoyment of the T 787. With AV Presets, you can customize different sources or program material and save your preferences into a memory bank of five user-friendly presets. Inputs can even be renamed to make it easy to select your components. Optimizing your T 787 home theatre system is effortless with the help of a supplied calibration microphone and Audyssey MultEQ XT. We've even by worked closely with Audyssey to develop custom target response curves.

Get Connected

The connectivity gives you great flexibility and options. It's equipped with seven HDMI inputs and two outputs, as well as digital coaxial and optical inputs/outputs. In addition to IP control there are IR outputs, 12V triggers, and an RS-232 port for easy connection to home automation systems. You can add speakers in other rooms or 'Zones', and with a simple on-screen setup and the supplied second zone remote (Zone output can be redirected to Back Surround channels), you can fill your home with high quality NAD sound. You can even add our IPD 2 Dock for iPod or for digital radio, our DB 2 digital DAB+ module (230V only).
